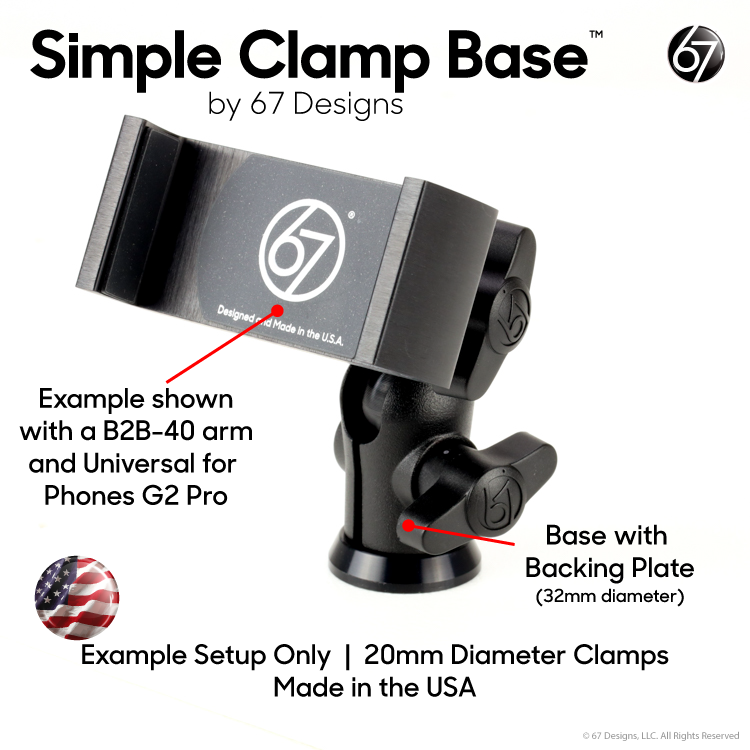

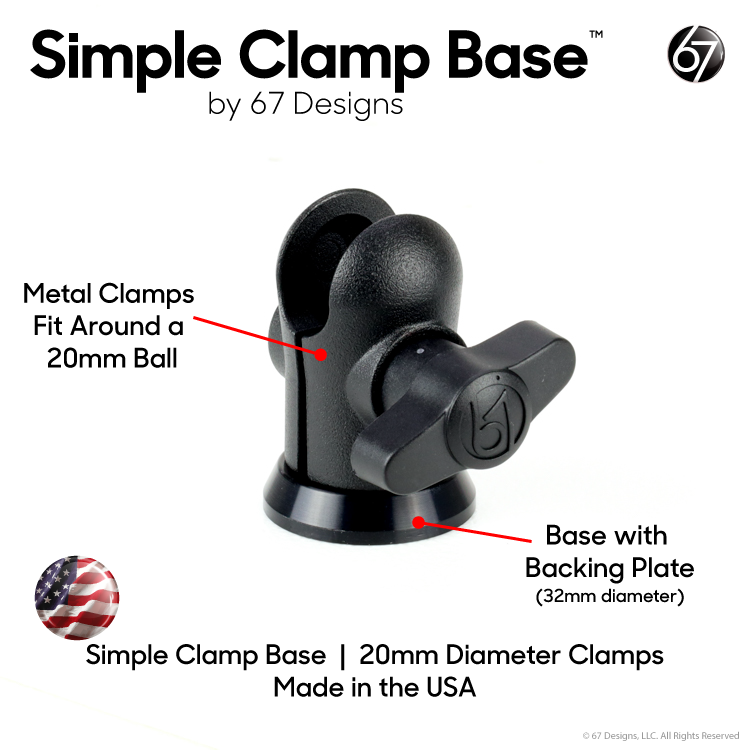

Simple Clamp Base

Benefits

• All-in-one kit contains the original Simple Clamp Base, aluminum backing plate and 4mm x 0.7 - 10mm* stainless steel button cap fasteners.
• Metal clamps for strength and durability - will not deform like plastic.
• Perfect for a growing army of designers, integrator and people looking to create their own installation and connect a 67 Designs Ball2Ball™ arm or any other base or holder component with a 20mm ball.

Product Details

• This utilizes 3 x 4mm threaded screws on a 20mm diameter. The outer diameter is 32mm.
• Ball2Ball™ Arms and other components sold separately. In images for example only. Do not forget to add them to your cart!
• Registered design.

Design Specifications for Installation

• The 4mm threaded holes will accept a thread of not more than 4mm depth. Design you mating parts to work with the appropriate 4mm fastener of your choosing.
• The 4mm threaded holes are spread out 120 degrees apart on a 20mm diameter. The design prevents the base from turning in this configuration.
• The base is 32mm in diameter.
• Patented - US12115919

* If your specific installation requires different thread length to suit your design or situation, you will need to be purchase those from a local hardware store.

Build Information

Materials: USA (70%), Asia (30%)
US Manufacturing Processes: Anodizing, Marking, Assembly & Packaging, QA.
Place of Manufacture: Dallas, Texas, USA

Single Source Provider & Company Ethos

Designed by:                  67 Designs
R&D by:                          67 Designs
Manufactured by:          67 Designs
Sold by:                          67 Designs
Fulfilled by:                    67 Designs
Customer Service by:   67 Designs

Our products are proudly designed, made and supported by 67 Designs staff.  The research, development and ongoing refinement of every product is done in Dallas, Texas. It is by listening and working directly with our customers that our business continues to evolve and go from strength to strength. We are passionate about working with our fellow Americans that understand the importance of developing US manufacturing skills and capabilities as well as our mission to truly strengthen our industrial base.
